Support > How to configure the QinQ (Basic QinQ) on ES3510MA?

Firmware Version: 1.5.1.18
IEEE 802.1Q tunneling (QinQ tunneling) uses a single Service Provider VLAN (SPVLAN) for customers who have multiple VLANs. QinQ tunneling expands VLAN space by using a VLAN-in-VLAN hierarchy, preserving the customer’s original tagged packets, and adding SPVLAN tags to each frame (also called double tagging).

At SW 1 and SW4
1. Configure access mode
Console(config)#interface ethernet 1/1
Console(config-if)#switchport mode access
Console(config-if)#switchport native vlan 2
Console(config-if)#switchport allowed vlan remove 1
2. Configure trunk mode
Console(config)#interface ethernet 1/9
Console(config-if)#switchport mode trunk
Console(config-if)#switchport allowed vlan add 2 tagged
Console(config-if)#switchport allowed vlan remove 1

At SW2 and SW3
1. Enable QinQ
Console(config)#dot1q-tunnel system-tunnel-control
2. Configure Q-in-Q access port
Console(config)interface ethernet 1/1
Console(config-if)#switchport allowed vlan add 20 untagged
Console(config-if)#switchport native vlan 20
Console(config-if)#switchport allowed vlan remove 1
Console(config-if)#switchport dot1q-tunnel mode access
3. Configure Q-in-Q uplink port
Console(config)interface ethernet 1/5
Console(config-if)#switchport allowed vlan add 20 tagged
Console(config-if)#switchport dot1q-tunnel mode uplink

Check the status on the switch
Console#show dot1q-tunnel
802.1Q Tunnel Status : Enabled
Port     Mode   TPID (Hex) Priority Mapping
-------- ------ ---------- ----------------
Eth 1/ 1 Access       8100 Disabled
Eth 1/ 2 Normal       8100 Disabled
Eth 1/ 3 Normal       8100 Disabled
Eth 1/ 4 Normal       8100 Disabled
Eth 1/ 5 Uplink       8100 Disabled
Eth 1/ 6 Normal       8100 Disabled
Eth 1/ 7 Normal       8100 Disabled
Eth 1/ 8 Normal       8100 Disabled
Eth 1/ 9 Normal       8100 Disabled
Eth 1/ 10 Normal       8100 Disabled

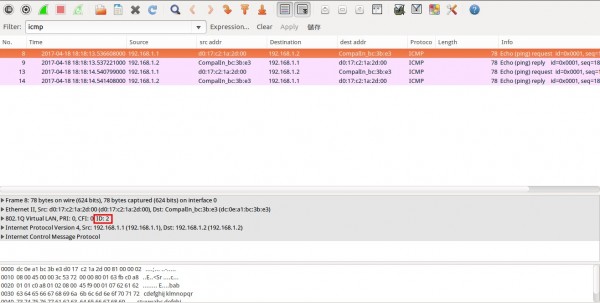

The packet, captured from SW1 to SW2.

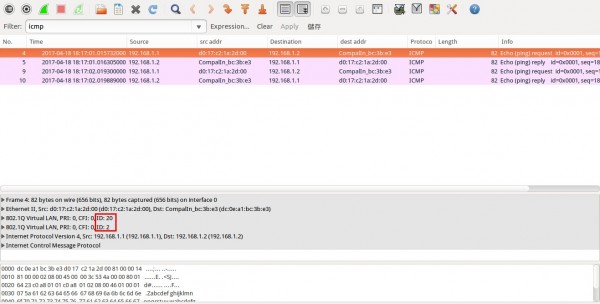

The packet, captured from SW2 to SW3.

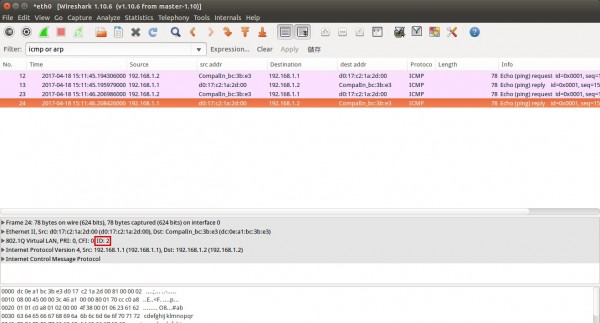

The packet, captured from SW3 to SW4.
