Support >How to check port statistics via SNMP OID on ECS2100 series?

Received Octets :
1.3.6.1.2.1.31.1.1.1.6 (ifHCInOctets, 64-bit version)
1.3.6.1.2.1.2.2.1.10 (ifInOctets, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.6.1
IF-MIB::ifHCInOctets.1 = Counter64: 1751607
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.10.1
IF-MIB::ifInOctets.1 = Counter32: 1751607

Transmitted Octets :
1.3.6.1.2.1.31.1.1.1.10 (ifHCOutOctets, 64-bit version)
1.3.6.1.2.1.2.2.1.16 (ifOutOctets, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.10.1
IF-MIB::ifHCOutOctets.1 = Counter64: 1045353
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.16.1
IF-MIB::ifOutOctets.1 = Counter32: 1045353

Received Errors :
1.3.6.1.2.1.2.2.1.14 (ifInErrors)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.14.1
IF-MIB::ifInErrors.1 = Counter32: 0

Transmitted Errors :
1.3.6.1.2.1.2.2.1.20 (ifOutErrors)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.20.1
IF-MIB::ifOutErrors.1 = No Such Instance currently exists at this OID

Received Unicast Packets :
1.3.6.1.2.1.31.1.1.1.7 (ifHCInUcastPkts, 64-bit version)
1.3.6.1.2.1.2.2.1.11 (ifInUcastPkts, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.7.1
IF-MIB::ifHCInUcastPkts.1 = Counter64: 79
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.11.1
IF-MIB::ifInUcastPkts.1 = Counter32: 79

Transmitted Unicast Packets :
1.3.6.1.2.1.31.1.1.1.11 (ifHCOutUcastPkts, 64-bit version)
1.3.6.1.2.1.2.2.1.17 (ifOutUcastPkts, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.11.1
IF-MIB::ifHCOutUcastPkts.1 = Counter64: 1684
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.17.1
IF-MIB::ifOutUcastPkts.1 = Counter32: 1684

Received Discarded Packets :
1.3.6.1.2.1.2.2.1.13 (ifInDiscards)
ECS2100 series didn’t support this counter, always return the value as 0.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.13.1
IF-MIB::ifInDiscards.1 = Counter32: 0

Transmitted Discarded Packets :
1.3.6.1.2.1.2.2.1.19 (ifOutDiscards)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.19.1
IF-MIB::ifOutDiscards.1 = Counter32: 0

Received Multicast Packets :
1.3.6.1.2.1.31.1.1.1.8 (ifHCInMulticastPkts, 64-bit version)
1.3.6.1.2.1.31.1.1.1.2 (ifInMulticastPkts, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.8.1
IF-MIB::ifHCInMulticastPkts.1 = Counter64: 20
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.2.1
IF-MIB::ifInMulticastPkts.1 = Counter32: 20

Transmitted Multicast Packets :
1.3.6.1.2.1.31.1.1.1.12 (ifHCOutMulticastPkts, 64-bit version)
1.3.6.1.2.1.31.1.1.1.4 (ifOutMulticastPkts, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.12.1
IF-MIB::ifHCOutMulticastPkts.1 = Counter64: 2134
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.4.1
IF-MIB::ifOutMulticastPkts.1 = Counter32: 2134

Received Broadcast Packets :
1.3.6.1.2.1.31.1.1.1.9 (ifHCInBroadcastPkts, 64-bit version)
1.3.6.1.2.1.31.1.1.1.3 (ifInBroadcastPkts, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.9.1
IF-MIB::ifHCInBroadcastPkts.1 = Counter64: 18069
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.3.1
IF-MIB::ifInBroadcastPkts.1 = Counter32: 18069

Transmitted Broadcast Packets :
1.3.6.1.2.1.31.1.1.1.13 (ifHCOutBroadcastPkts, 64-bit version)
1.3.6.1.2.1.31.1.1.1.5 (ifOutBroadcastPkts, 32-bit version)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.13.1
IF-MIB::ifHCOutBroadcastPkts.1 = Counter64: 5833
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.31.1.1.1.5.1
IF-MIB::ifOutBroadcastPkts.1 = Counter32: 5833

Received Unknown Packets :
1.3.6.1.2.1.2.2.1.15 (ifInUnknownProtos)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.15.1
IF-MIB::ifInUnknownProtos.1 = No Such Instance currently exists at this OID

QLen Output - the length of the output packet queue (in packets) :
1.3.6.1.2.1.2.2.1.21 (ifOutQLen)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.2.2.1.21.1
IF-MIB::ifOutQLen.1 = No Such Instance currently exists at this OID

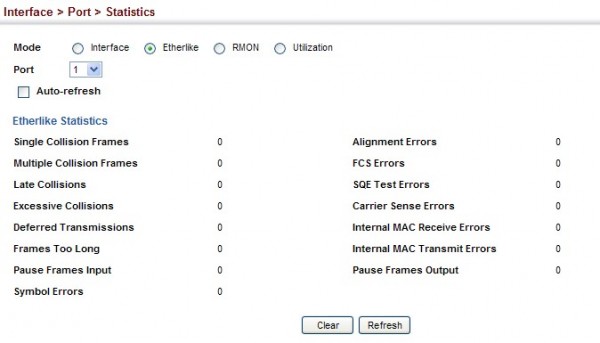

Single Collision Frames :
1.3.6.1.2.1.10.7.2.1.4 (dot3StatsSingleCollisionFrames)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.4.1
SNMPv2-SMI::transmission.7.2.1.4.1 = Counter32: 0

Multiple Collision Frames :
1.3.6.1.2.1.10.7.2.1.5 (dot3StatsMultipleCollisionFrames)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.5.1
SNMPv2-SMI::transmission.7.2.1.5.1 = Counter32: 0

Late Collisions :
1.3.6.1.2.1.10.7.2.1.8 (dot3StatsLateCollisions)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.8.1
SNMPv2-SMI::transmission.7.2.1.8.1 = Counter32: 0

Excessive Collisions :
1.3.6.1.2.1.10.7.2.1.9 (dot3StatsExcessiveCollisions)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.9.1
SNMPv2-SMI::transmission.7.2.1.9.1 = Counter32: 0

Deferred Transmissions :
1.3.6.1.2.1.10.7.2.1.7 (dot3StatsDeferredTransmissions)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.7.1
SNMPv2-SMI::transmission.7.2.1.7.1 = Counter32: 0

Frames Too Long :
1.3.6.1.2.1.10.7.2.1.13 (dot3StatsFrameTooLongs)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.13.1
SNMPv2-SMI::transmission.7.2.1.13.1 = Counter32: 0

Symbol Errors :
1.3.6.1.2.1.10.7.2.1.18 (dot3StatsSymbolErrors)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.18.1
SNMPv2-SMI::transmission.7.2.1.18.1 = Counter32: 0

Pause Frames Input :
1.3.6.1.2.1.10.7.10.1.3 (dot3InPauseFrames)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.10.1.3.1
SNMPv2-SMI::transmission.7.10.1.3.1 = Counter32: 0

Pause Frames Output :
1.3.6.1.2.1.10.7.10.1.4 (dot3OutPauseFrames)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.10.1.4.1
SNMPv2-SMI::transmission.7.10.1.4.1 = Counter32: 0

Alignment Errors :
1.3.6.1.2.1.10.7.2.1.2 (dot3StatsAlignmentErrors)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.2.1
SNMPv2-SMI::transmission.7.2.1.2.1 = No Such Instance currently exists at this OID

FCS Errors :
1.3.6.1.2.1.10.7.2.1.3 (dot3StatsFCSErrors)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.3.1
SNMPv2-SMI::transmission.7.2.1.3.1 = Counter32: 0

SQE Test Errors :
1.3.6.1.2.1.10.7.2.1.6 (dot3StatsSQETestErrors)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.6.1
SNMPv2-SMI::transmission.7.2.1.6.1 = No Such Instance currently exists at this OID

Carrier Sense Errors :
1.3.6.1.2.1.10.7.2.1.11 (dot3StatsCarrierSenseErrors)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.11.1
SNMPv2-SMI::transmission.7.2.1.11.1 = No Such Instance currently exists at this OID

Internal MAC Receive Errors :
1.3.6.1.2.1.10.7.2.1.16 (dot3StatsInternalMacReceiveErrors)
ECS2100 series didn’t support this counter.
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.16.1
SNMPv2-SMI::transmission.7.2.1.16.1 = No Such Instance currently exists at this OID

Internal MAC Transmit Errors :
1.3.6.1.2.1.10.7.2.1.10 (dot3StatsInternalMacTransmitErrors)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.10.7.2.1.10.1
SNMPv2-SMI::transmission.7.2.1.10.1 = Counter32: 0

Drop Events :
1.3.6.1.2.1.16.1.1.1.3 (etherStatsDropEvents)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.3.1
SNMPv2-SMI::mib-2.16.1.1.1.3.1 = Counter32: 0

Jabbers :
1.3.6.1.2.1.16.1.1.1.12 (etherStatsJabbers)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.12.1
SNMPv2-SMI::mib-2.16.1.1.1.12.1 = Counter32: 0

Fragments :
1.3.6.1.2.1.16.1.1.1.11 (etherStatsFragments)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.11.1
SNMPv2-SMI::mib-2.16.1.1.1.11.1 = Counter32: 0

Collisions :
1.3.6.1.2.1.16.1.1.1.13 (etherStatsCollisions)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.13.1
SNMPv2-SMI::mib-2.16.1.1.1.13.1 = Counter32: 0

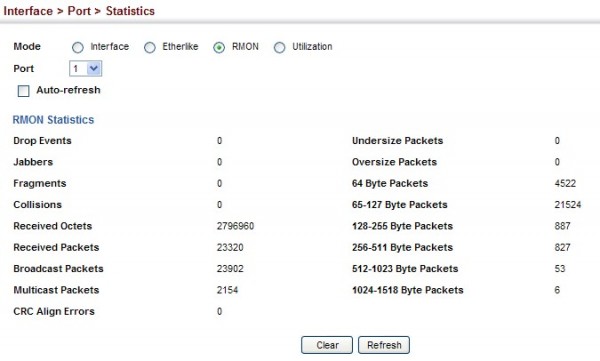

Received Octets :
1.3.6.1.2.1.16.1.1.1.4 (etherStatsOctets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.4.1
SNMPv2-SMI::mib-2.16.1.1.1.4.1 = Counter32: 2796960

Received Packets :
1.3.6.1.2.1.16.1.1.1.5 (etherStatsPkts)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.5.1
SNMPv2-SMI::mib-2.16.1.1.1.5.1 = Counter32: 23320

Broadcast Packets :
1.3.6.1.2.1.16.1.1.1.6 (etherStatsBroadcastPkts)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.6.1
SNMPv2-SMI::mib-2.16.1.1.1.6.1 = Counter32: 23902

Multicast Packets :
1.3.6.1.2.1.16.1.1.1.7 (etherStatsMulticastPkts)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.7.1
SNMPv2-SMI::mib-2.16.1.1.1.7.1 = Counter32: 2154

CRC Align Errors :
1.3.6.1.2.1.16.1.1.1.8 (etherStatsCRCAlignErrors)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.8.1
SNMPv2-SMI::mib-2.16.1.1.1.8.1 = Counter32: 0

Undersize Packets :
1.3.6.1.2.1.16.1.1.1.9 (etherStatsUndersizePkts)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.9.1
SNMPv2-SMI::mib-2.16.1.1.1.9.1 = Counter32: 0

Oversize Packets :
1.3.6.1.2.1.16.1.1.1.10 (etherStatsOversizePkts)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.10.1
SNMPv2-SMI::mib-2.16.1.1.1.10.1 = Counter32: 0

64 Byte Packets :
1.3.6.1.2.1.16.1.1.1.14 (etherStatsPkts64Octets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.14.1
SNMPv2-SMI::mib-2.16.1.1.1.14.1 = Counter32: 4522

65-127 Byte Packets :
1.3.6.1.2.1.16.1.1.1.15 (etherStatsPkts65to127Octets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.15.1
SNMPv2-SMI::mib-2.16.1.1.1.15.1 = Counter32: 21524

128-255 Byte Packets :
1.3.6.1.2.1.16.1.1.1.16 (etherStatsPkts128to255Octets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.16.1
SNMPv2-SMI::mib-2.16.1.1.1.16.1 = Counter32: 887

256-511 Byte Packets :
1.3.6.1.2.1.16.1.1.1.17 (etherStatsPkts256to511Octets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.17.1
SNMPv2-SMI::mib-2.16.1.1.1.17.1 = Counter32: 827

512-1023 Byte Packets :
1.3.6.1.2.1.16.1.1.1.18 (etherStatsPkts512to1023Octets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.18.1
SNMPv2-SMI::mib-2.16.1.1.1.18.1 = Counter32: 53

1024-1518 Byte Packets :
1.3.6.1.2.1.16.1.1.1.19 (etherStatsPkts1024to1518Octets)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.2.1.16.1.1.1.19.1
SNMPv2-SMI::mib-2.16.1.1.1.19.1 = Counter32: 6

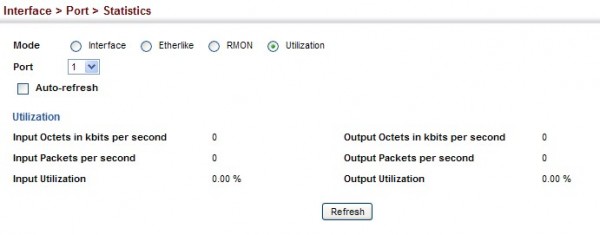

Input Octets in kbits per second :
1.3.6.1.4.1.259.10.1.43.1.2.6.1.2 (portInOctetRate)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.4.1.259.10.1.43.1.2.6.1.2.1
SNMPv2-SMI::enterprises.259.10.1.43.1.2.6.1.2.1 = Counter64: 0

Input Packets per second :
1.3.6.1.4.1.259.10.1.43.1.2.6.1.3 (portInPacketRate)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.4.1.259.10.1.43.1.2.6.1.3.1
SNMPv2-SMI::enterprises.259.10.1.43.1.2.6.1.3.1 = Counter64: 0

Input Utilization :
1.3.6.1.4.1.259.10.1.43.1.2.6.1.4 (portInUtil)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.4.1.259.10.1.43.1.2.6.1.4.1
SNMPv2-SMI::enterprises.259.10.1.43.1.2.6.1.4.1 = INTEGER: 0

Output Octets in kbits per second :
1.3.6.1.4.1.259.10.1.43.1.2.6.1.5 (portOutOctetRate)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.4.1.259.10.1.43.1.2.6.1.5.1
SNMPv2-SMI::enterprises.259.10.1.43.1.2.6.1.5.1 = Counter64: 0

Output Packets per second :
1.3.6.1.4.1.259.10.1.43.1.2.6.1.6 (portOutPacketRate)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.4.1.259.10.1.43.1.2.6.1.6.1
SNMPv2-SMI::enterprises.259.10.1.43.1.2.6.1.6.1 = Counter64: 0

Output Utilization :
1.3.6.1.4.1.259.10.1.43.1.2.6.1.7 (portOutUtil)
C:\>snmpwalk -v 2c -c private 10.2.28.216 1.3.6.1.4.1.259.10.1.43.1.2.6.1.7.1
SNMPv2-SMI::enterprises.259.10.1.43.1.2.6.1.7.1 = INTEGER: 0

About Us
Site Term
Terms and Conditions of Sale
About SMC Network Australia
Contact Us
Support
Product Warranty
Customer Service
Download
FAQ
Product Registration
Reseller
Reseller Partner Program
Trade Application
Looking for Reseller
Where To Buy
NSW QLD VIC
TAS ACT
NT WA SA
Online Shop
