Support >How to setup Voice VLAN

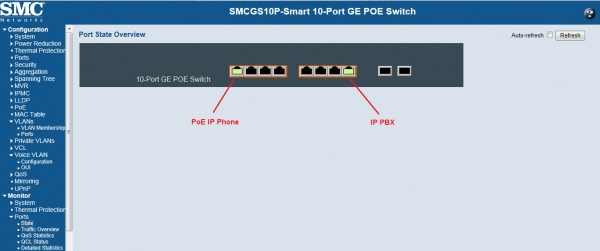

Step1.
port 1 for PoE IP Phone
port 8 for IP PBX





Step2.

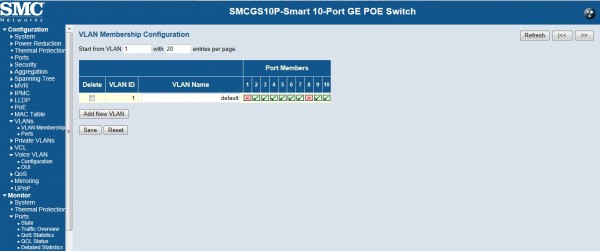

remove VLAN membership from VLAN 1 on port 1 and port 8





Step3.

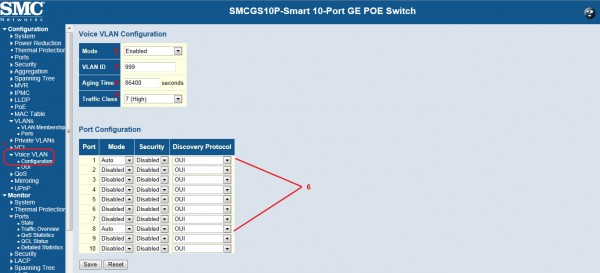

1. select Voice VLAN > Configuration
2. select Enable option to enable Voice VALN
3. setup VALN ID for Voice VLAN
4. setup Aging Time for Voice VLAN
5. setup Traffic Class for Voice vLAN
6. select target ports for Voice VLAN






Step4.

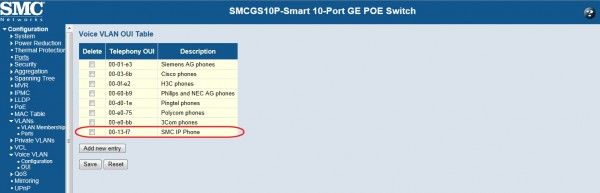

select Voice VLAN > OUI page, and add new entry into the OUI table





Step5.
connect IP Phone on port1
connect IP PBX on port8
port1 and port8 will be added into VLAN 999 automatically via Voice VLAN function
