Network Adminisators save time with Cable Diagnostic Feature when broken cables exist in the current network environment.
The same cable leads a different testing result. Tested cable in a Cable Tester, the cable test result shows the cable is a normal one, while tested it in the SMCGS10P-Smart VeriPHY Cable Diagnostics, test results indicates the exact broken pairs.

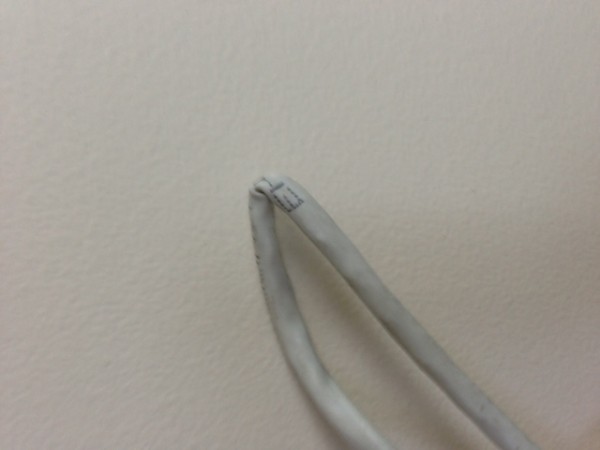

The tested cable:

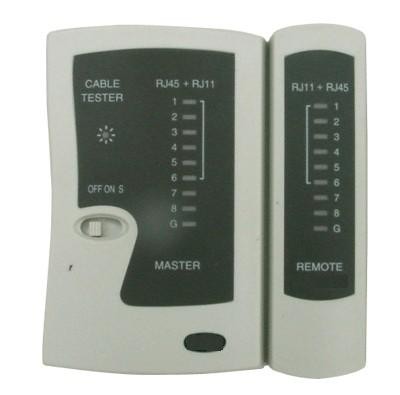

Tested the cable in a Cable Tester, the test result shows the cable is normal:

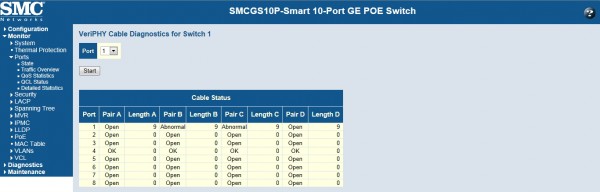

But, tested the cable in the MCGS10P-Smart VeriPHY Cable Diagnostics, it indicates different results on each pair:
Pair A: Open
Pair B: Abnormanal
Pair C: Abnormanal
Pari D: Open
